Product Information

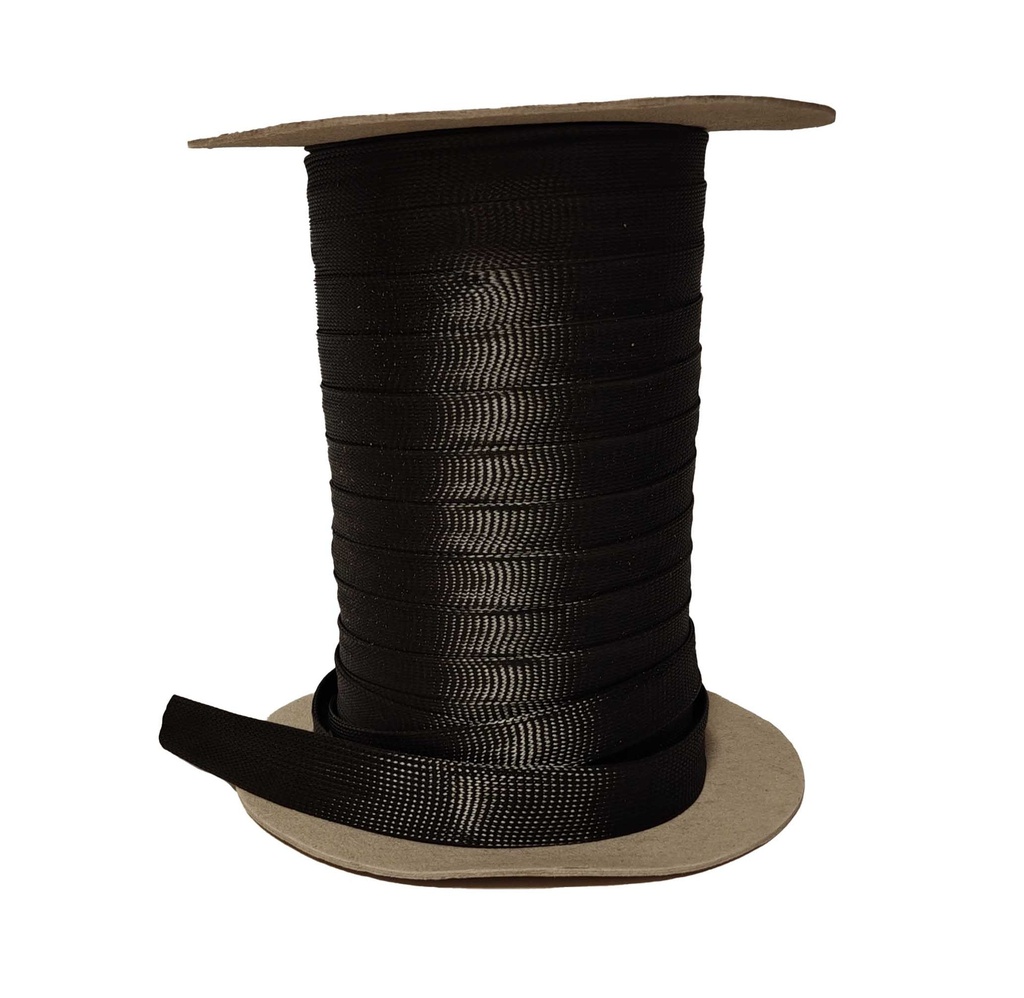

CARBON FIBER BRAID A120/03 3K
The carbon fiber braid is a cylindrical, flexible carbon fiber reinforcement designed especially for strengthening and repairing round or curved components. The braid structure is based on carbon fiber yarns oriented at approximately ±45 degrees relative to the braid’s longitudinal axis in its relaxed state. This gives the braid excellent conformability to components of various sizes and shapes.
A unique characteristic of the braid is its adaptability: when stretched, it becomes thinner and the weave opens up; when compressed, it thickens and the fiber angle becomes steeper. This makes it a highly versatile material for many applications. The D-dimension (diameter) specified in the product’s technical data refers to the braid size when the fibers are at ±45 degrees. However, the braid can also be used on both smaller and larger diameters — users should note that this changes the fiber orientation and may affect the mechanical properties.
Carbon fiber braid is commonly used to reinforce or repair cylindrical structures such as tubes, rods, or shafts. Typical applications include repair of carbon fiber bicycle frames, manufacture of hockey and baseball bats, and masts and booms in sailing. Its light weight, strength, and flexibility make it an extremely efficient material for demanding composite structures.
Properties
Fiber: 3K
Diameter: 45mm
Areal weight: 34 g/m²
